Intelligent

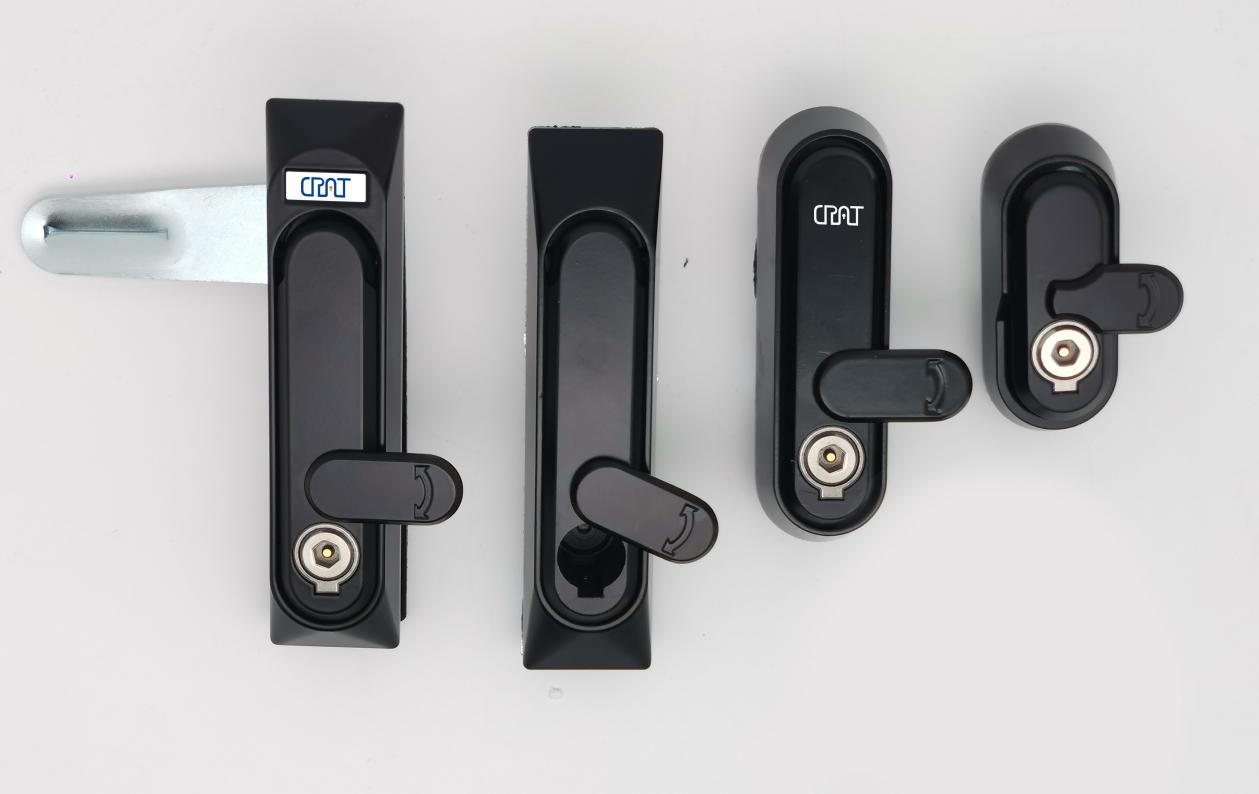

Passive Smart cabinet lock
Digital encryption, switch lock records

图片7.png 未标题-2.jpg

Parameter

Lock core material	SUS304 Stainless steel
Lock body material	Zinc alloy spray plastic+SUS304 Stainless steel
Operating voltage	3V-5.5V
Operating environment	Temperature(-40~80℃)，Humidity(20％~98％ RH)
Unlocking times	≥50000
Protection level	IP64
Encoding digits number	128(no mutual opening rate )
Lock cylinder technology	360°idle design to prevent violent opening;Storage Operations(Unlock,lock,patrol,etc.)log
Encryption technology	Digital encoding technology&encrypted communication technology;Eliminate technology activation

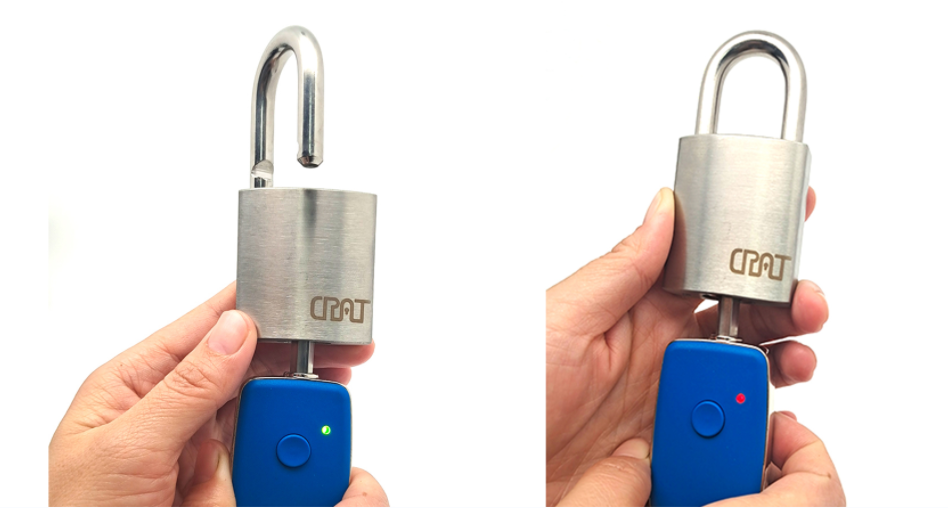

Smart Electronic Key

CRT-K100L
CRT-K104L
CRT-K102-4G

Parameter

Model	CRT-K100L/K104L	CRT-K102-4G
Operating voltage	3.3V~4.2V
Operating environment	Temperature(-40~80℃) ,Humidity(20%~93%RH)
Battery capacity	500 mAh（One charge for unlock 1000 times）
Charging time	2 hour
Communication interface	Type-C
Unlock Record	100,000 Pieces
Protection level	IP67
Fingerprint identification	×	√
Visual screen	×	√
Date transfer	√	√
Remote authorization	×	√
Voice+light prompt	√	√
Bluetooth	√	√
NB-Iot / 4G	×	√

Settable
Authorization
Identify the unlock range and time limit set by the system.
Who/when/whick lock?
Prevent unauthorized unlock,
Even if they have key.

time	operation	name	key	lock
10:20-14:20	unlock	jack	Key01	Lock01


Application
Crat smart lock is widely used in industries such as communication,power,railway,logistics,banks,municipal,medical,etc.


Before
Mechanical lock cylinder &mechanical key
Now
Electronic lock cylinder &electronic key
Cumbersome
Too many types of key,easy to mess up
Convenient
One key unlocks multiple locks
Backward
The status can only be known on the spot
Intelligent
Remote unlocking,full monitoring,Status monitoring,lock positioning,etc
Low security
Mechanical lock cylinder,easy to pry
High security
Electronic lock cylinder,Digital encryption,No technology unlocking
Keys lost,difficult to detect,easy to cause losses
Lost keys can be blacklisted,no more locks can be unlocked
If lock is knocked, no way to know
Built-in sensor chip,abnormal opening can issue an alarm
