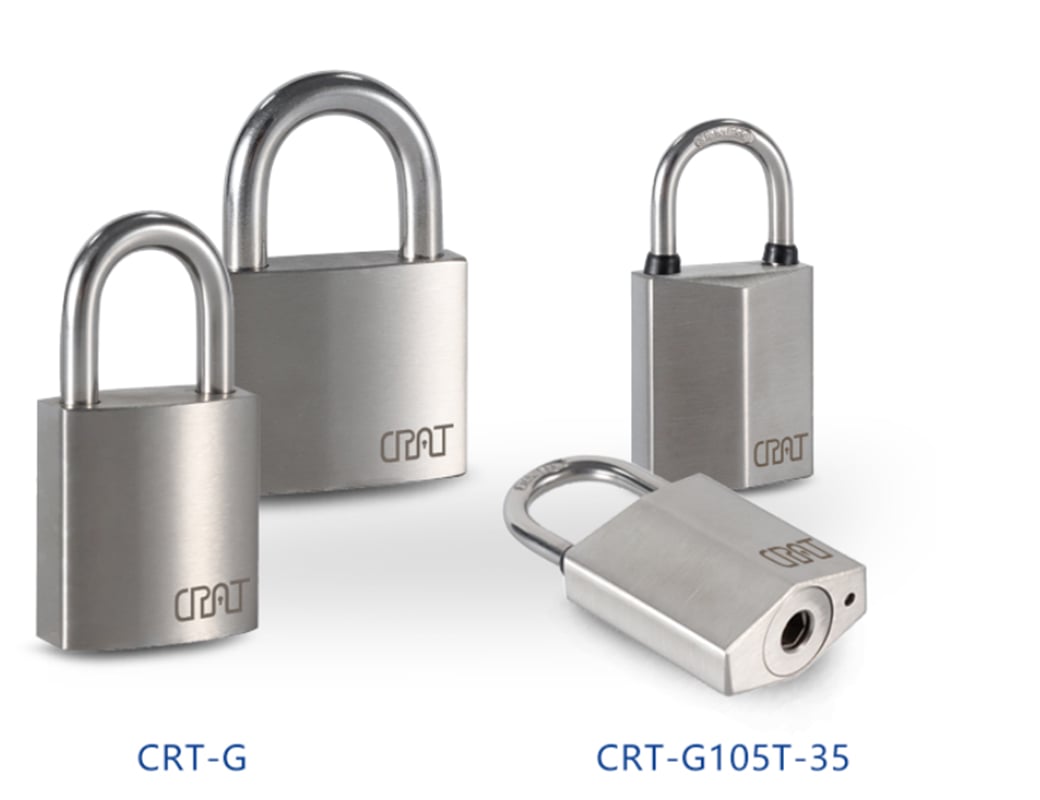

Passive Smart Electronic Padlock
Multiple specifications · Cost-effective

未标题-15.jpg 未标题-16.jpg

Parameter

Lock core material	SUS304 Stainless steel
Lock body material	Brushed stainless steel
Operating voltage	3V-5.5V
Operating environment	Temperature(-40~80℃)，Humidity(20％~98％ RH)
Unlocking times	≥300000
Protection level	IP67
Encoding digits number	128(no mutual opening rate )
Lock cylinder technology	360°idle design to prevent violent opening;Storage Operations(Unlock,lock,patrol,etc.)log
Encryption technology	Digital encoding technology&encrypted communication technology;Eliminate technology activation

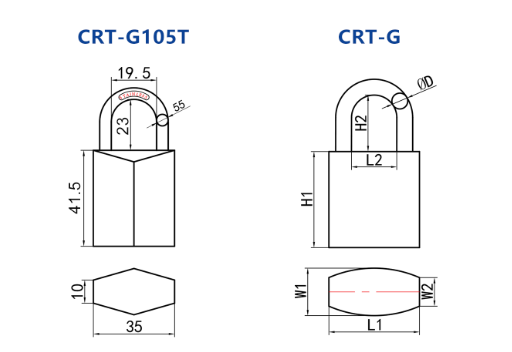

Specification


NO	Model	Product Name	L1	L2	W1	W2	H1	H2	D
1	CRT-G100T	33 Shackle jumping padlock	33	19.5	18.5	10	41.5	20.5	4.5
2	CRT-G200T	40 Shackle jumping padlock	40	20	21	12.7	44	25	7
3	CRT-G300T	50 Shackle jumping padlock	50	25	22	12.8	46.5	25	9
4	CRT-G400T	60 Shackle jumping padlock	60	31	23	14.2	50	32	10

Note: The above dimensions can be customized according to requirements

Smart Electronic Key

CRT-K100L
CRT-K104L
CRT-K102-4G

Model	CRT-K100L/K104L	CRT-K102-4G
Operating voltage	3.3V~4.2V
Operating environment	Temperature(-40~80℃) ,Humidity(20%~93%RH)
Battery capacity	500 mAh（One charge for unlock 1000 times）
Charging time	2 hour
Communication interface	Type-C
Unlock Record	100,000 Pieces
Protection level	IP67
Fingerprint identification	×	√
Visual screen	×	√
Date transfer	√	√
Remote authorization	×	√
Voice+light prompt	√	√
Bluetooth	√	√
NB-Iot / 4G	×	√

Application
CRAT smart lock is widely used in industries such as communication, power,
railway, logistics, banks, municipal, medical, etc.

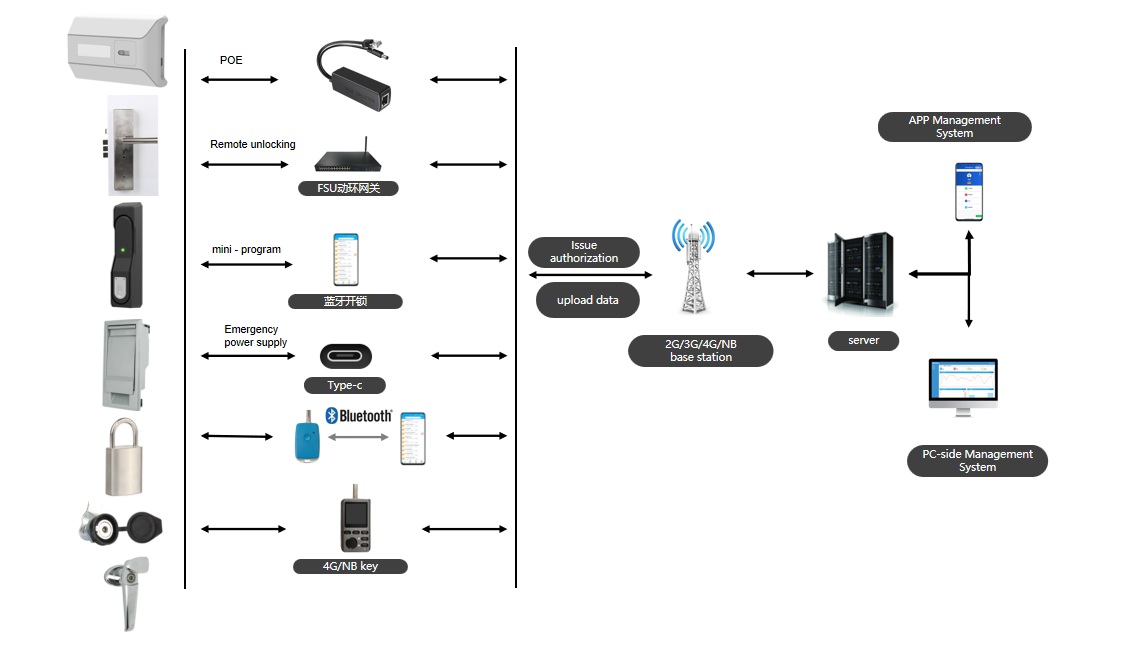

Management System
Lock management system can achieve remote authorization, remote unlocking,
real-time monitoring and other functions。
When, which key, who, which lock, and the state of the lock，All can be tracked.
Management has become more efficient and secure.


Before
Mechanical lock cylinder &mechanical key
Now
Electronic lock cylinder &electronic key
Cumbersome
Too many types of key,easy to mess up
Convenient
One key unlocks multiple locks
Backward
The status can only be known on the spot
Intelligent
Remote unlocking,full monitoring,Status monitoring,lock positioning,etc
Low security
Mechanical lock cylinder,easy to pry
High security
Electronic lock cylinder,Digital encryption,No technology unlocking
Keys lost,difficult to detect,easy to cause losses
Lost keys can be blacklisted,no more locks can be unlocked
If lock is knocked, no way to know
Built-in sensor chip,abnormal opening can issue an alarm
